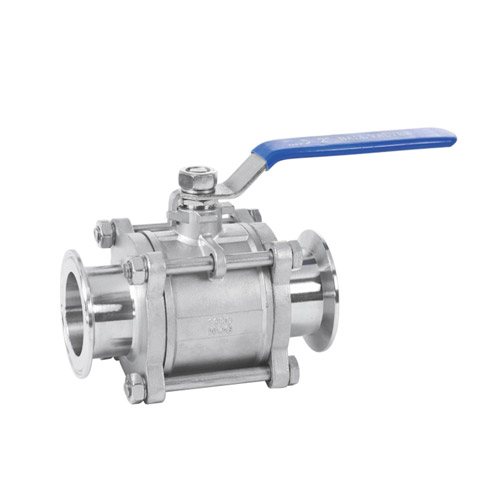

執(zhí)行標準

防爆闊桿/全通徑

適用溫度范圍-20 to 120℃

使用壓力≤1.6MPa

適用介質(zhì)水、氣、油

設計制造GB/T-12224/ANSI B16.34

螺紋標準BSPT/BSP/NPT/DIN/JIS/RC/G

檢查與測試GB/T-13927/API598

氣壓測試1.6MPa

材料列表

部件名稱材質(zhì)

閥體CF8MCF8

閥蓋CF8MCF8

球SS316SS304

閥桿SS316SS304

閥座RTFERTFE

桿密封PTFEPTFE

中頭墊PTFEPTFE

填料壓套SS202SS202

手柄SS202SS202

鎖片--

膠套PLASTICPLASTIC

彈墊SS202SS202

螺母SS202SS202

螺栓SS202SS202

彈墊SS202SS202

螺帽SS202SS202

外形尺寸

SIZELADJHE

1/2"9712.709.4025.458.0122.9

3/4"11019.0515.7525.461.0122.9

1"11125.5022.2050.468.0144.9

1-1/4"12732.2028.5050.479.0165.9

1-1/2"14138.2034.9050.484.5188.9

2"15550.8047.5063.993.2188.9

2-1/2"168.563.6060.3077.5131.8255.3

3"196.276.3073.0090.9140.0260.8

4"232.5101.6094.40118.9173.6322.2
